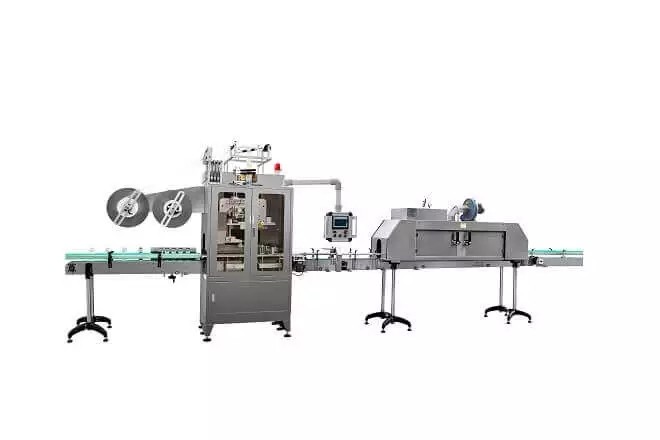

The Composition of Shrink Sleeve Labeling Machine

  Shrink sleeve labeling machine is one of the equipment with high technical content in the back-end packaging, mainly used in: food, beverage and pharmaceutical industry, condiment, juice, injection needle, milk, refined oil and other fields.

  Sleeve labeling principle: When a bottle on the conveyor belt passes through the bottle detection eye, the servo-controlled drive group will automatically send the next label, and at the same time, the brushing wheel group will brush the next label, and this label will be sleeved. into the bottle.

  Components of shrink sleeve labeling machine:

  1.The cutter head group adopts an eccentric linkage mechanism and is driven by a stepping motor. There is no rotation action without the induction of the bottle, which increases the service life and safety. At the same time, its cutter is easier to replace with ordinary paper cutter blades.

  2.Machine set, the whole machine adopts stainless steel body, which is used to support the host and fix the conveyor belt.

  3.shrink tunnel,Use electric heat or steam heat to shrink the label sleeved into the bottle and evenly attach it to the bottle.

  4.The driving group adopts the double-drive feeding mechanism, which is an indispensable part for fixing the central column. No matter the bottle becomes larger or smaller, the required size can be changed by simply rotating the handwheel. The transmission function is completed by the gear group.

  5.The bottle-separating screw divides the bottles to be labelled at equal distances and enters the bottle group.

  6.The bottle group adopts synchronous transmission on both sides, and only one hand wheel is needed to adjust the height and the positioning of the bottle, so that the bottle does not shake and the height of the sleeve label is controlled.

  7.The three-color warning light is a green warning light during normal operation, a yellow flashing light when ready, and a red light when the host is abnormal.

  8.The central column, the label film material is sleeved and stretched, so that the film material can be conveyed and cut.

  9.The electric eye frame group uses the optical fiber electric eye to transmit the signal, provides the control system for the fixed size transmission, and the position of the electric eye can be adjusted up and down.
